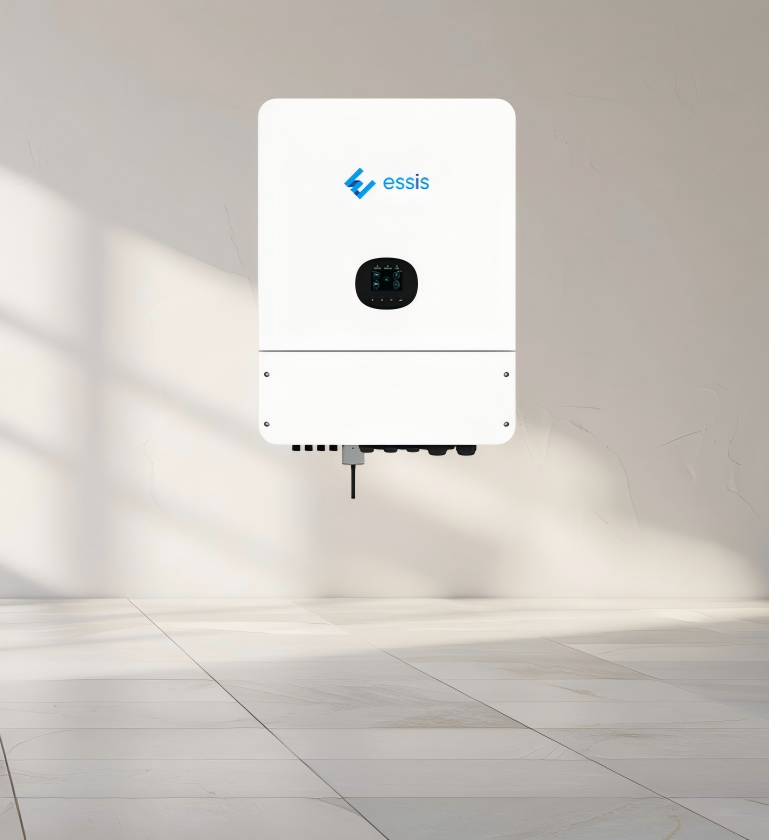

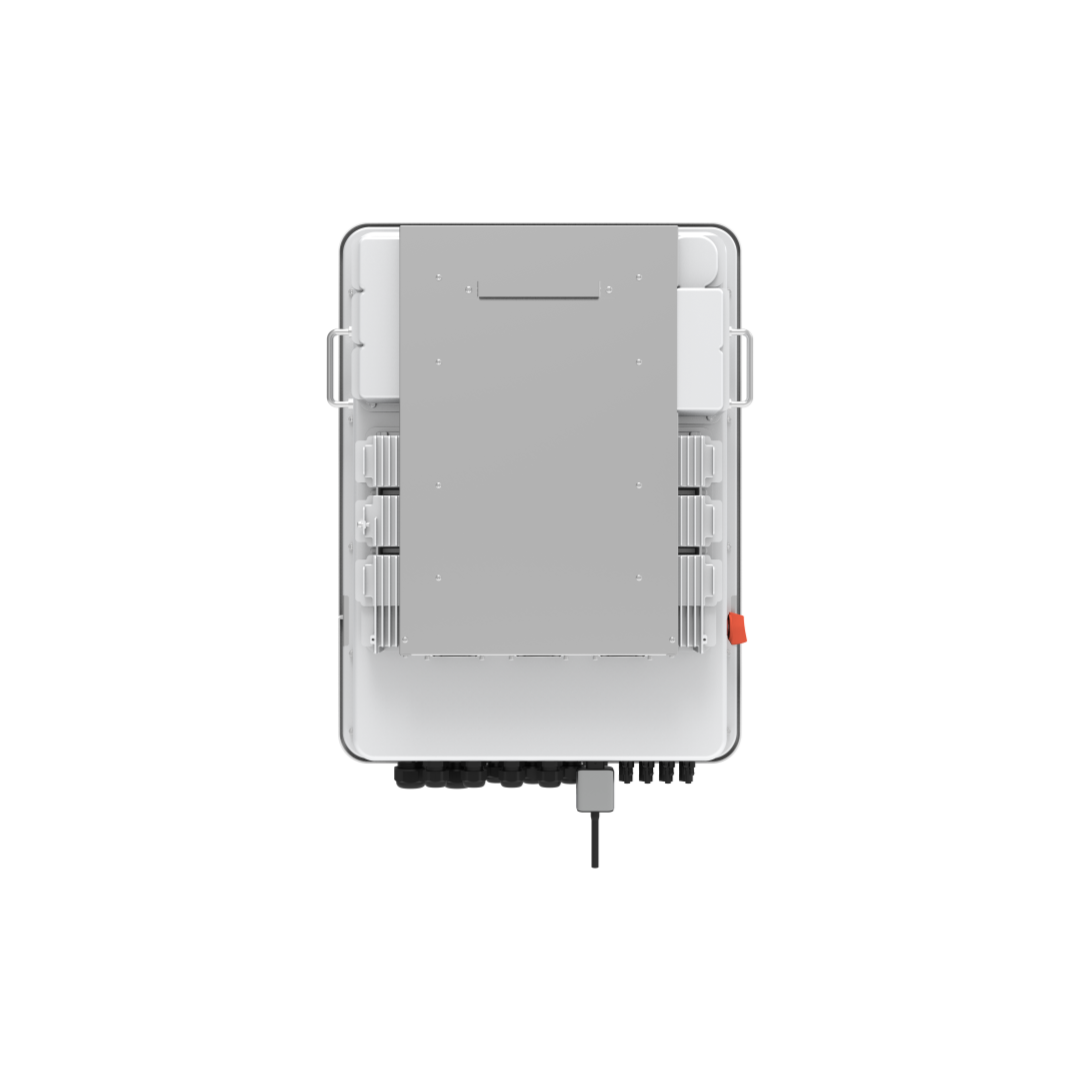

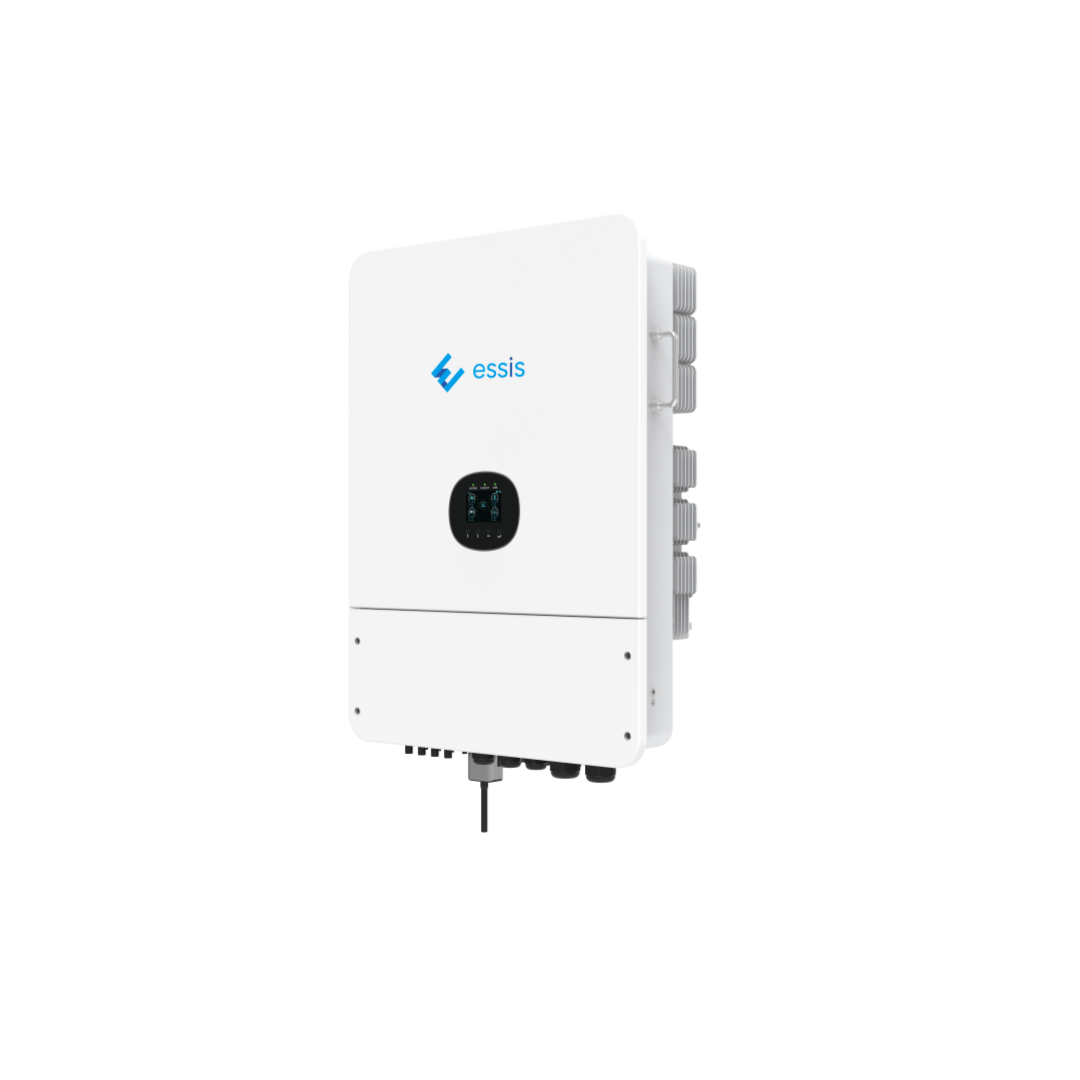

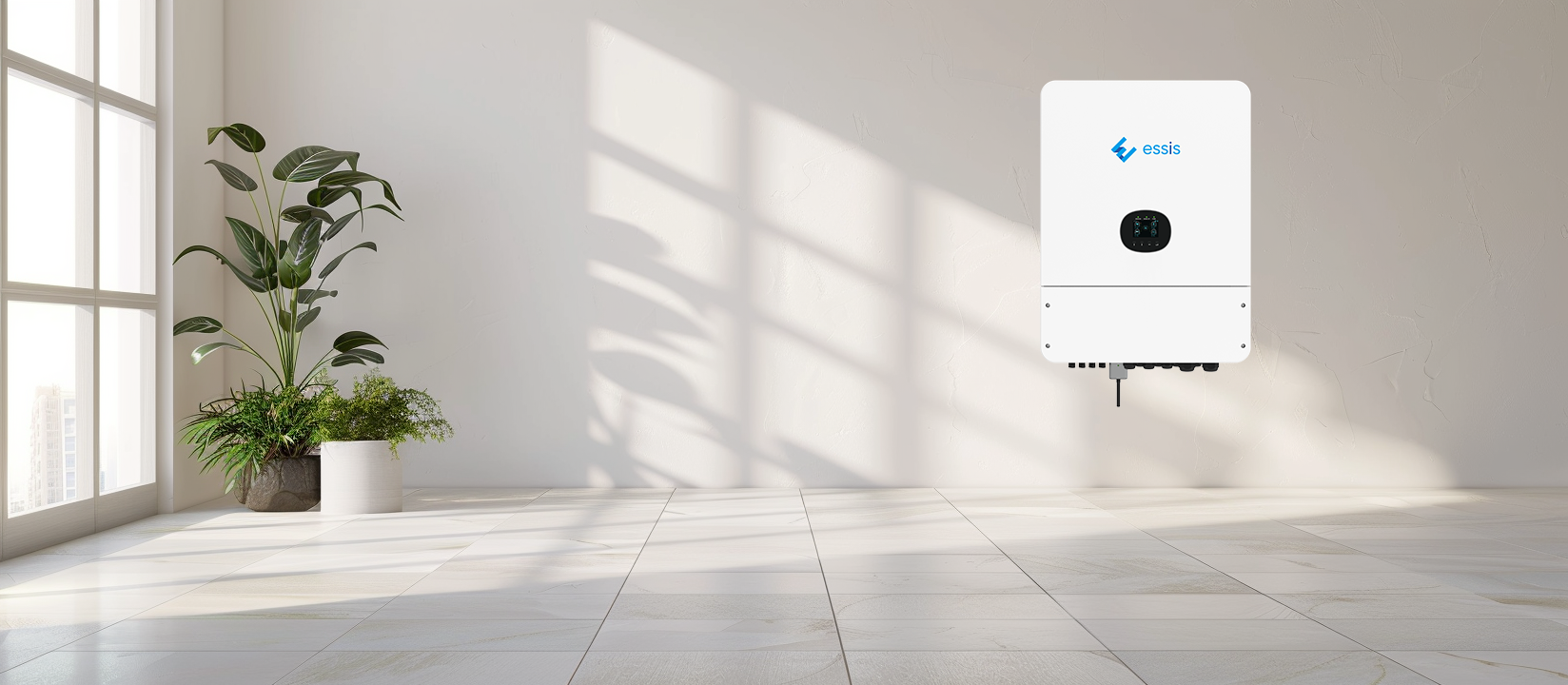

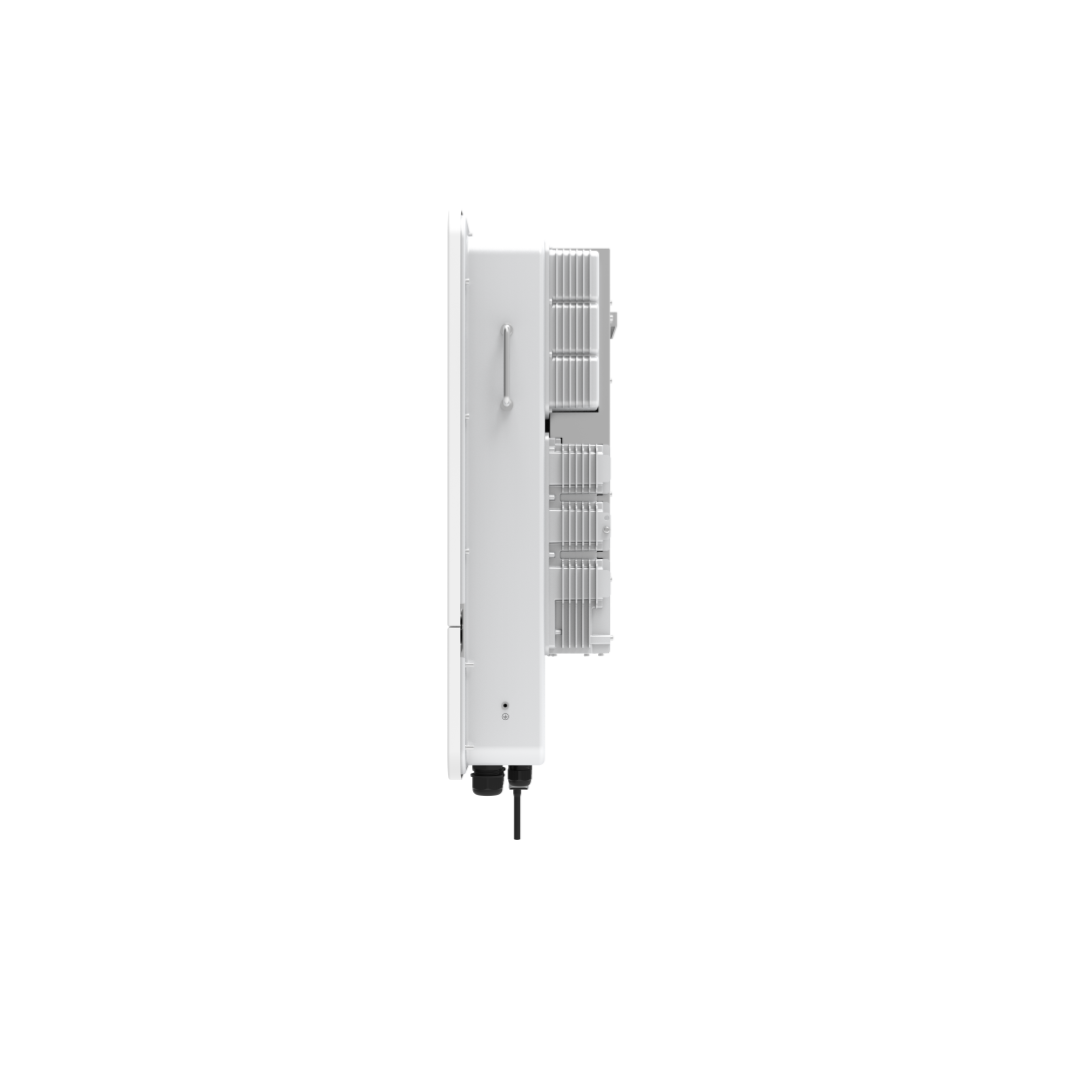

SUN-5~20K-H3
ESS hybrid inverter supports 5–20 kW three-phase output with up to 97.6% efficiency. Featuring four MPPTs, IP66 protection, 10ms UPS switching, and flexible system compatibility, it ensures reliable and efficient power for residential energy storage systems.
-
430A
Fast Charging
-
IP66
Protection rating
-
Up to 97.6%
Max. Efficiency
Core parameters
-
Model
SUN-15K-H3
Max. DC Input Voltage(V)
1000
Rated DC Input Voltage(V)
600
MPPT Voltage Range(V)
160-850
Battery Type
Lithium battery/Lead-acid battery
Battery Voltage Range (V)
40-60
Dimension(mm)
782*572*219
Weight (kg)
38
Protection Degree
IP66
Communication
RS485/LAN/Bluetooth/WiFi,4G(Optional)
-
Model
SUN-20K-H3
Max. DC Input Voltage(V)
1000
Rated DC Input Voltage(V)
600
MPPT Voltage Range(V)
160-850
Battery Type
Lithium battery/Lead-acid battery
Max. Charge/Discharge Current(A)
215/215
Dimension(mm)
782*572*219
Weight (kg)
38
Protection Degree
IP66
Communication
RS485/LAN/Bluetooth/WiFi,4G(Optional)
Product Advantage
-
Generator & EV Charger CompatibleCompatible with diesel generators and EV chargers for greater system flexibility. -
Up to 3 Units in ParallelSupports up to three units in parallel for increased off-grid capacity. -
Easy CommissioningFast commissioning and intelligent remote monitoring reduce installation time.
