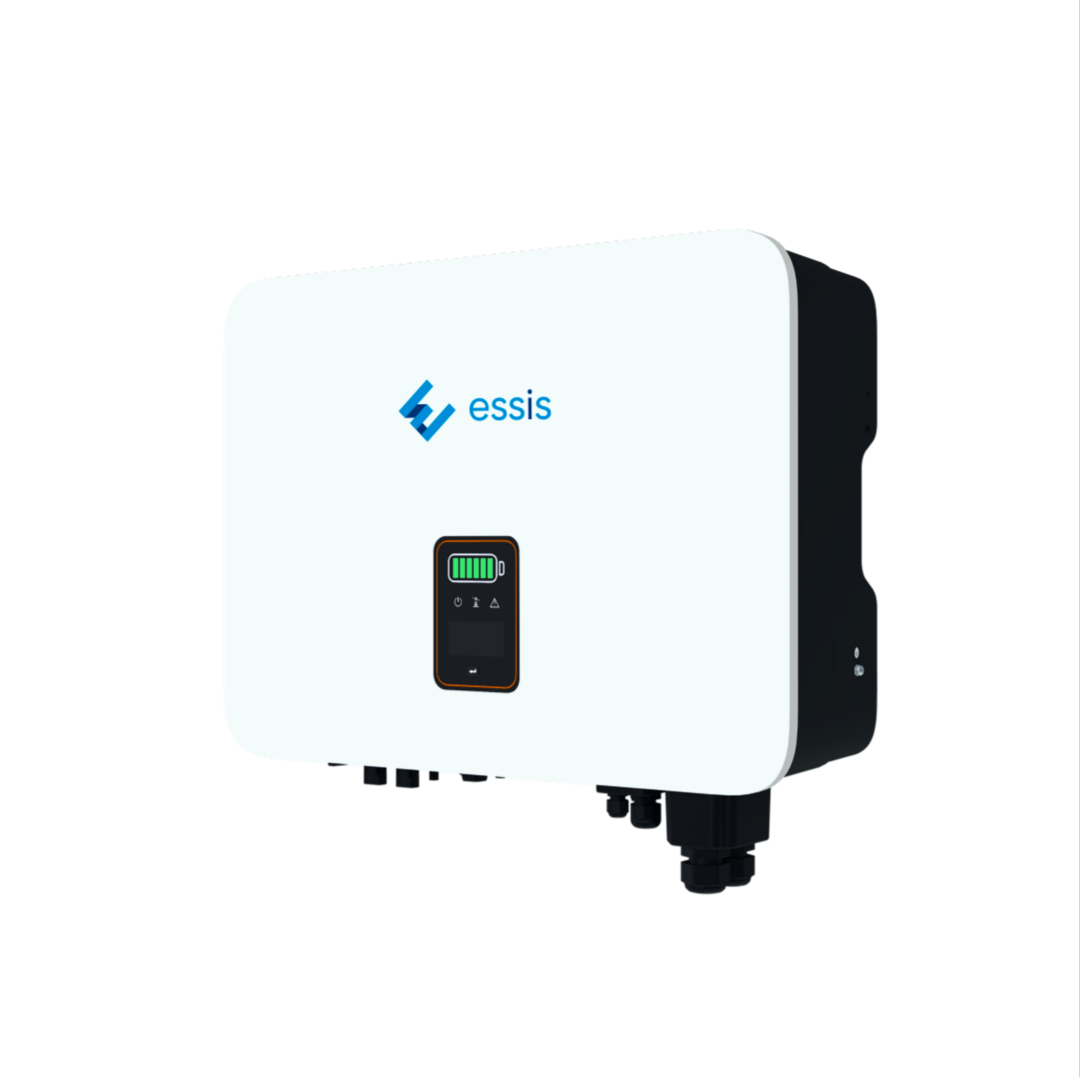

SUN-4~12K-H3
ESS hybrid inverter supports up to 12 kW AC output with a maximum efficiency of up to 98.2%. Designed for high-voltage lithium battery systems, it features dual MPPTs, a wide battery voltage range, fast UPS-level backup switching, intelligent monitoring, and reliable backup power performance. With IP65 protection and excellent load adaptability, it delivers stable and efficient power for residential energy storage applications.
-
6KW/8KW/10KW/12KW
Rated Output Power
-
IP65
Protection rating
-
Up to 98.2%
Max. Efficiency
Core parameters
-
Model SUN-6K-H3
Battery Battery Communication Mode
CAN/RS485
Battery Voltage Rage(V)
140-750
Rated Output Power(W)
6000
Max. Output Power (W)
6600
Rated AC Frequency (Hz)
50/60 45-55/55-65
Dimension(mm)
550*410*175
Weight (kg)
26~28
Protection Degree
IP65
Communication
WiFi/LAN(Optional)
-
Model
SUN-12K-H3
Battery Battery Communication Mode
CAN/RS485
Battery Voltage Rage(V)
140-750
Rated Output Power(W)
12000
Max. Output Power (W)
13200
Rated AC Frequency (Hz)
50/60 45-55/55-65
Dimension(mm)
550*410*175
Weight (kg)
26~28
Protection Degree
IP65
Communication
WiFi/LAN(Optional)
Product Advantage
-
High EfficiencyMax.Efficiency up to 98.2% -
Wide Battery Voltage RangeFlexible battery compatibility for higher self-consumption and system flexibility. -
Powerful Load AdaptabilityReliably supports a wide range of residential electrical loads.
