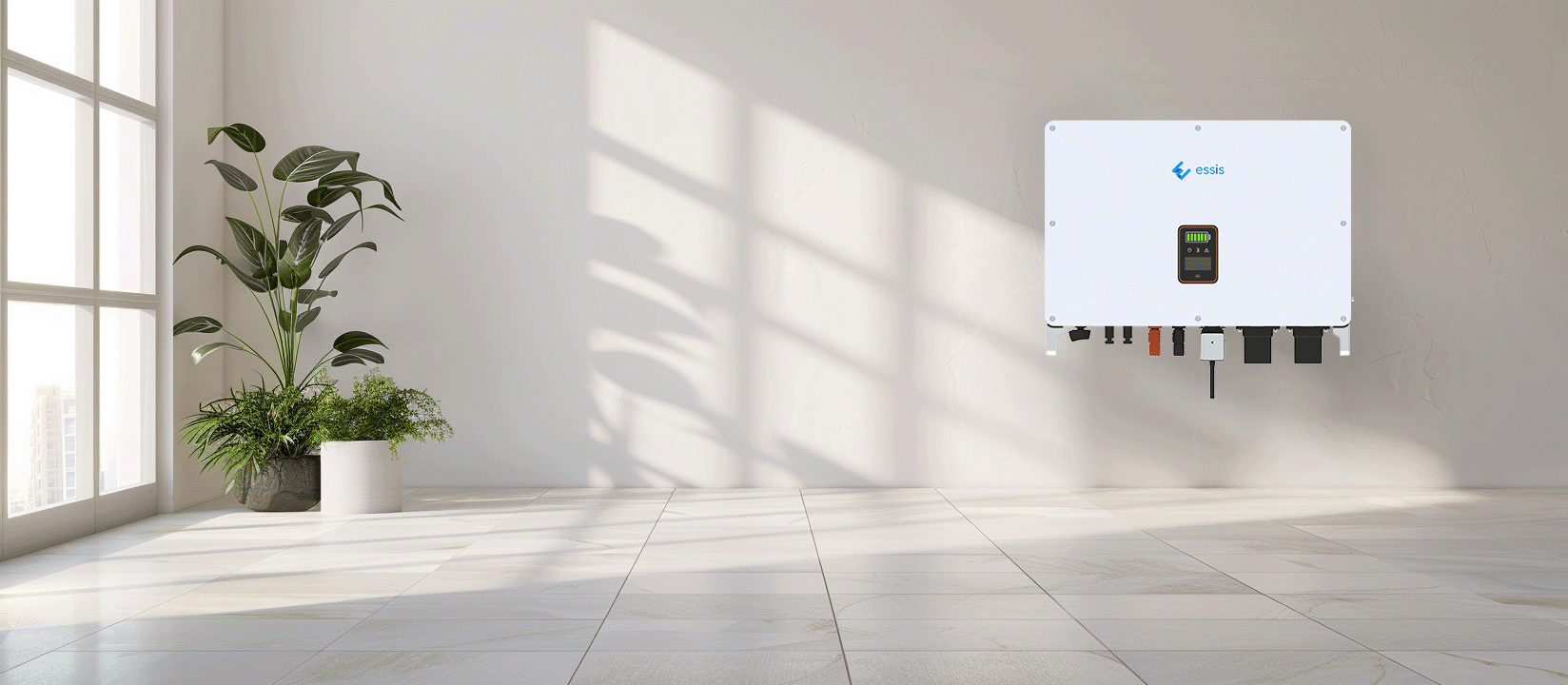

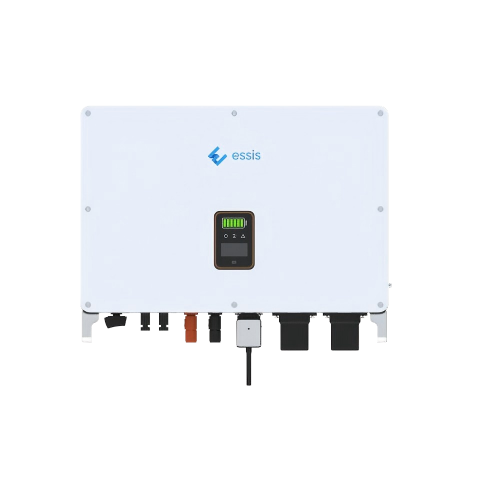

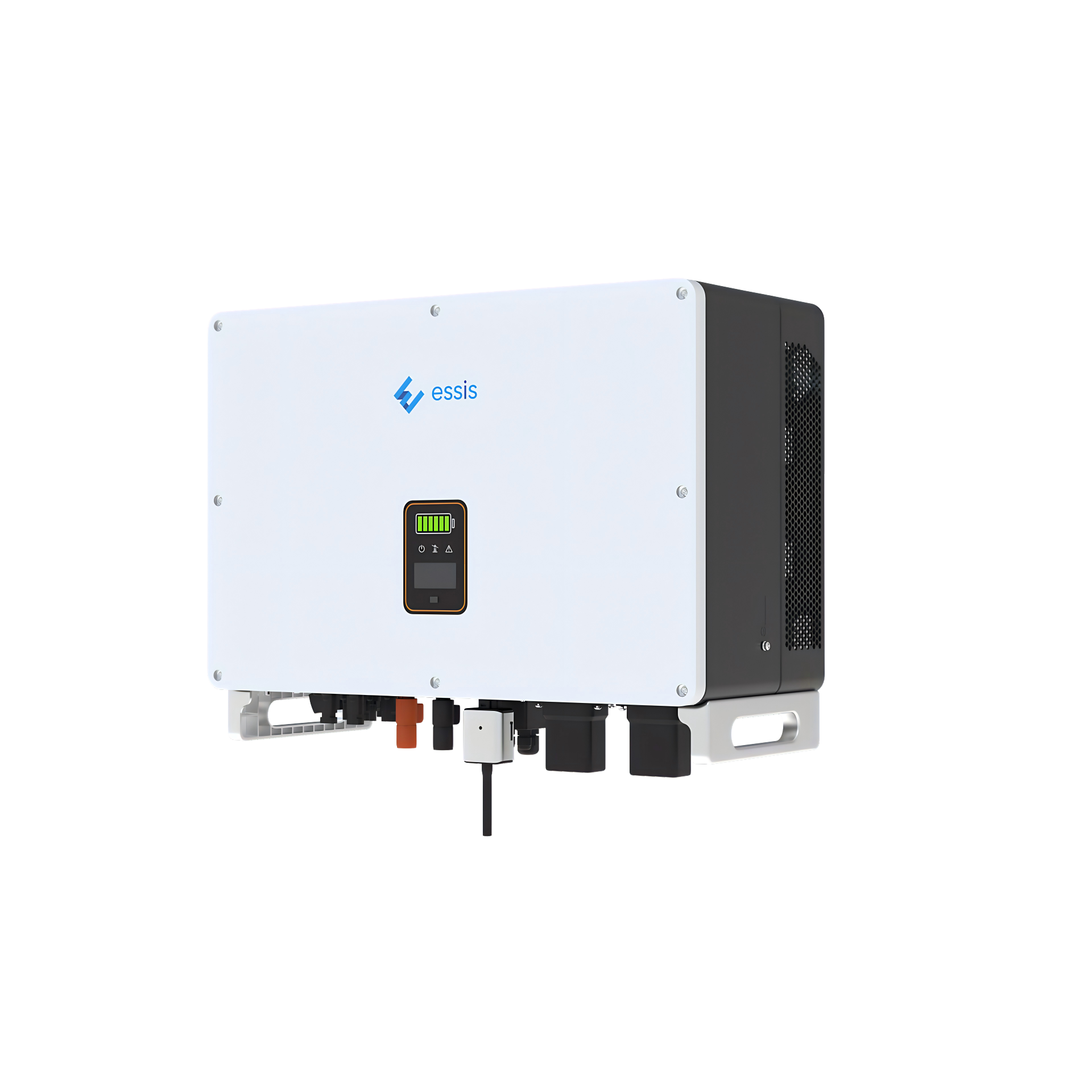

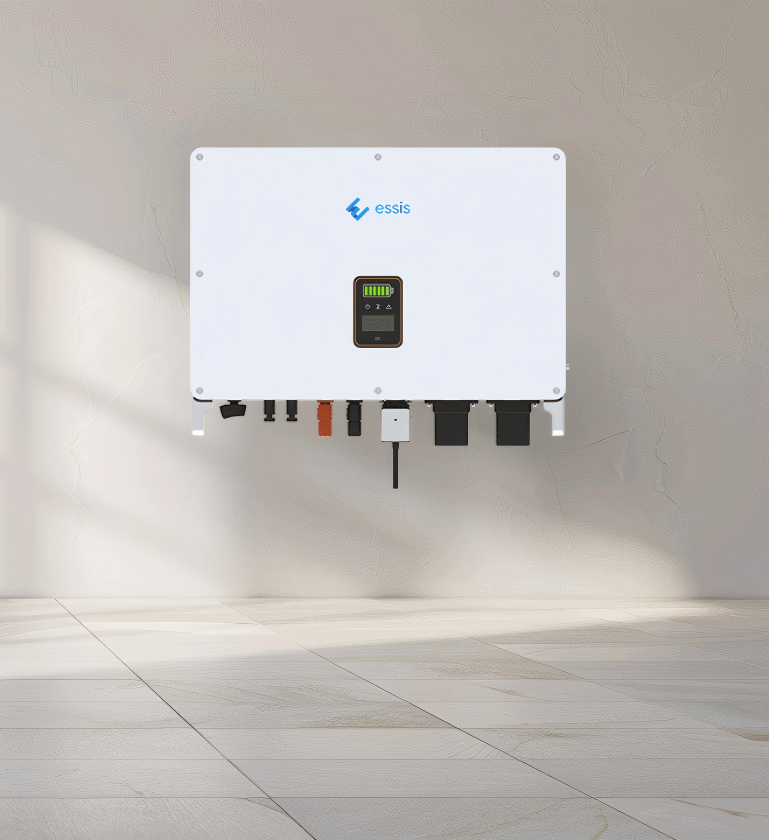

SUN-15~33K-H3
ESSIS three-phase high-voltage hybrid inverter supports the intelligent coordinated operation of photovoltaic power generation, energy storage systems and the power grid. It can be widely used in various energy management scenarios such as self-consumption, peak load shifting and backup power supply.
-
15-33KW
Power range
-
IP66
Protection rating
-
99.9%
MPPT Efficiency
Core parameters
-
Model
SUN-15~33K-H
Battery Communication Mode
CAN / RS485
Battery Voltage Rage(V)
200-800
Start-up Voltage (V)
190
MPPT Voltage Range (V)
200-850
Dimension(mm)
640*490*290
Weight (kg)
48
Protection Degree
IP66
Communication
WiFi/LAN (Optional)
Product Advantage
-
High EfficiencyMax. Efficiency up to 98.2%; MPPT Efficiency up to 99.9% -
On-grid and off-grid integrationUninterruptible power supply, switch to off-grid mode within 10ms. -
High load capacity, stable outputUp to 110% phase unbalanced output available on both on-grid and back-up outputs. -
Intelligent Monitoring and Remote O&MFast and easy data checking and commissioning via App or OLED display.
