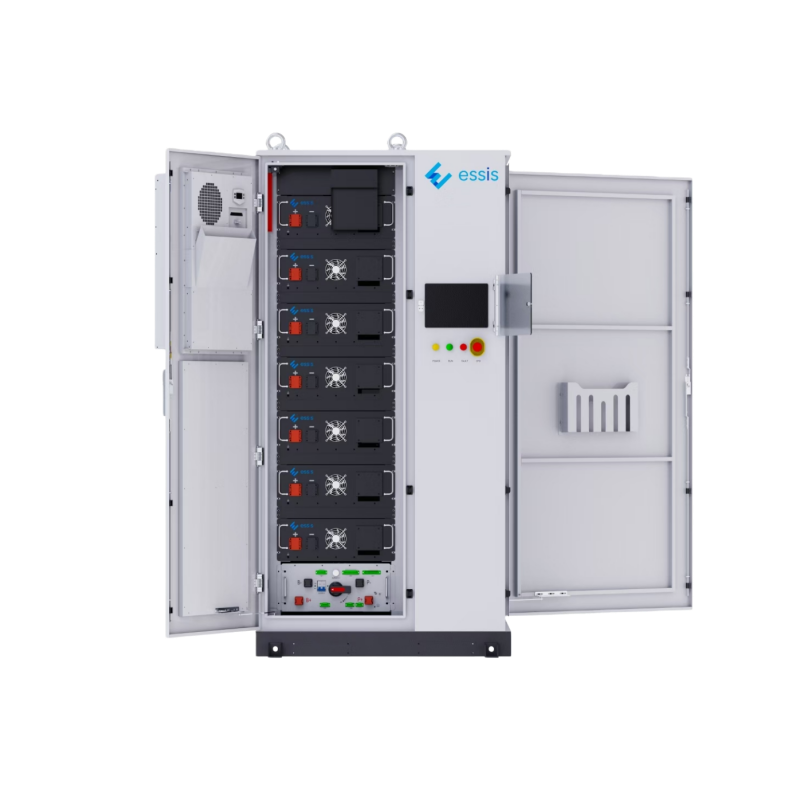

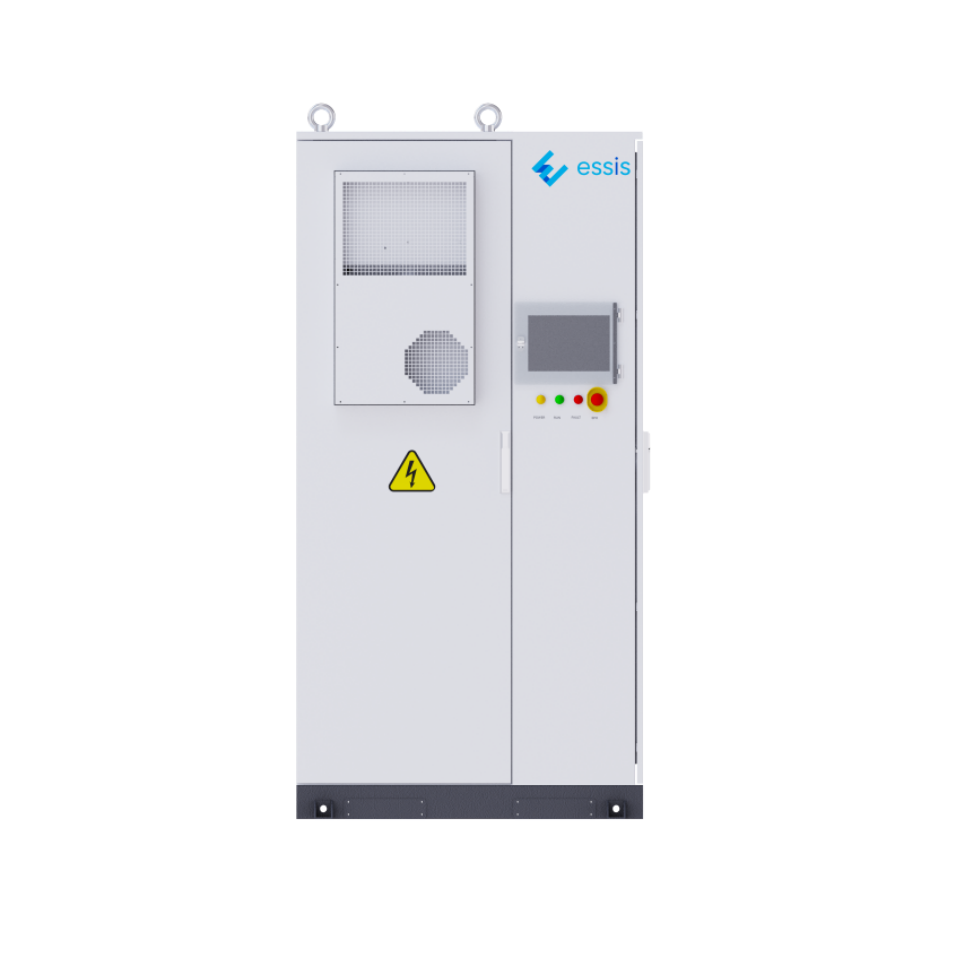

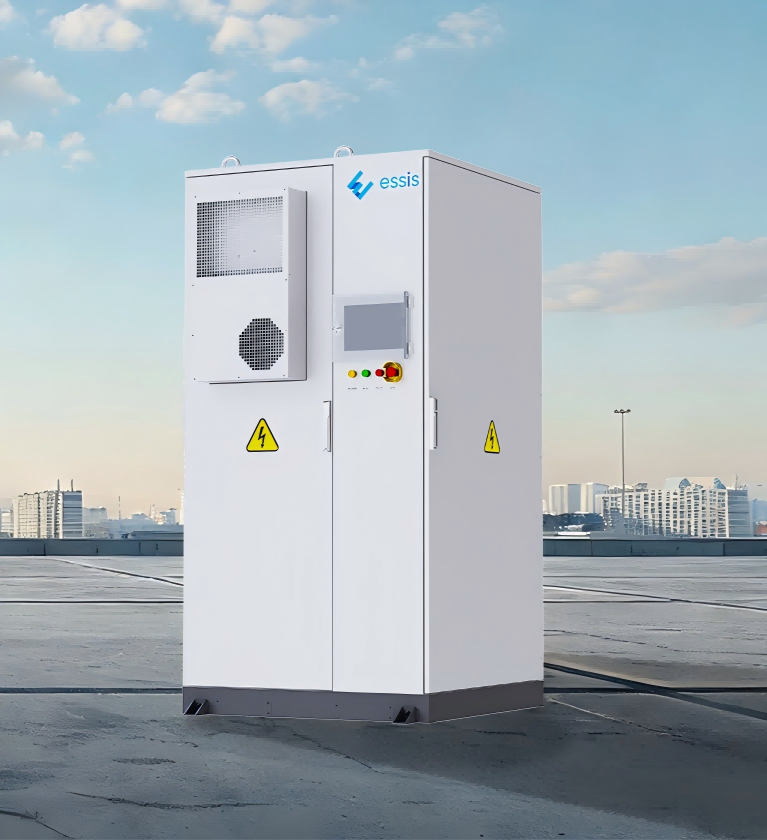

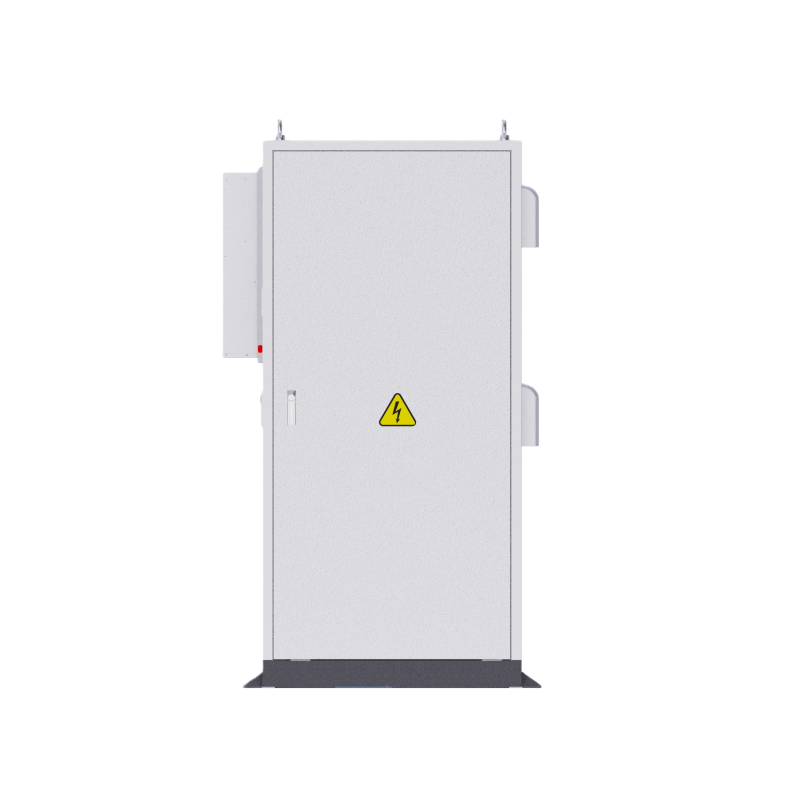

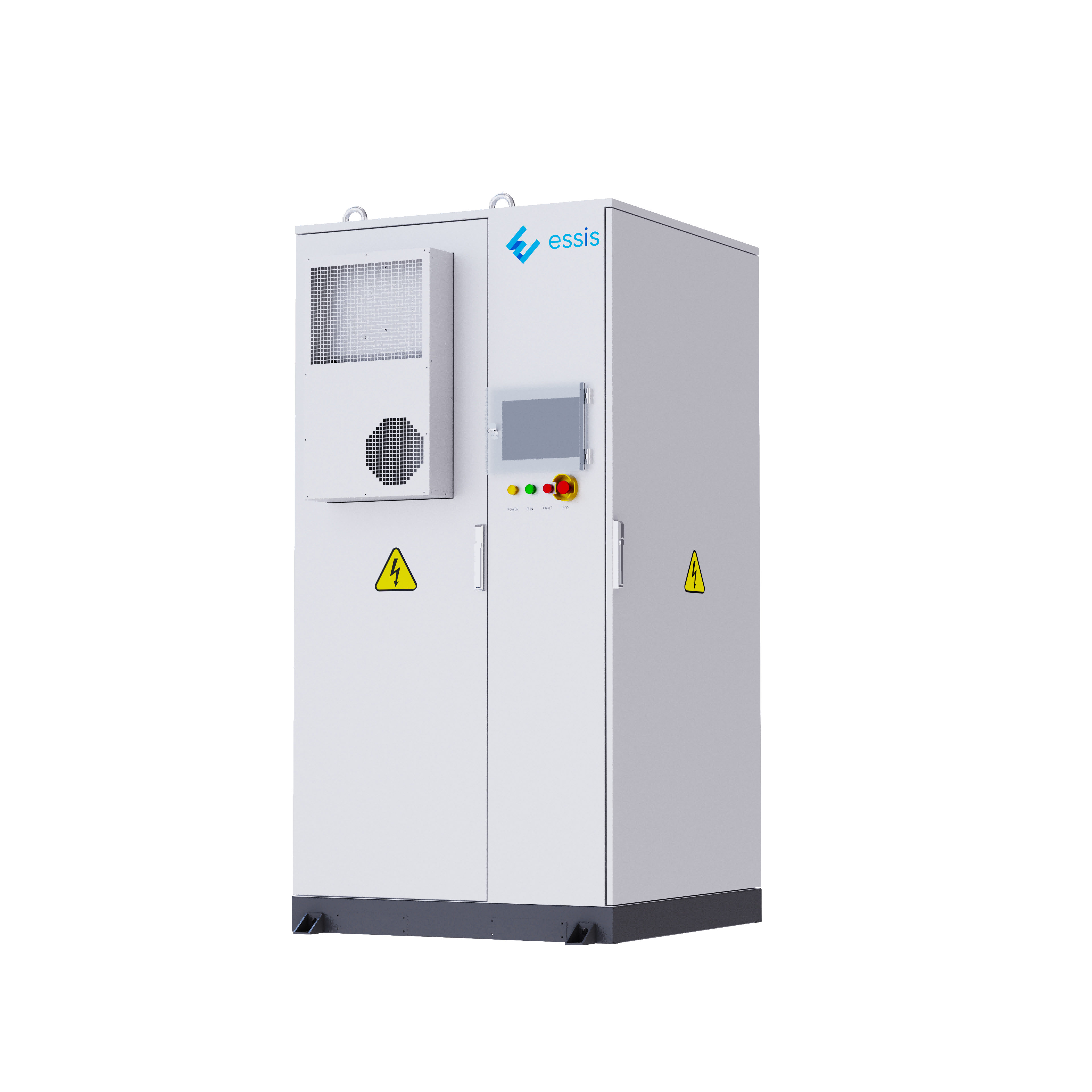

ESS100F
ESS100F offers a single-unit energy capacity of 50KW 100 kWh with an integrated cabinet and air-cooling design. It is suitable for large residential and small to medium commercial and industrial scenarios, supporting peak shaving, PV self-consumption, scheduled dispatch, and backup power applications.
-
50kw
Rated Power Per Unit
-
100kwh
Energy Storage Capacity Per Unit
-
All-in-one air cooling
Cooling Method
Core parameters
-
Model
ESS100F
Battery Type
LiFePO4
Battery Capacity
280Ah
AC Maximum Current
80A
Weight
1800kg
Dimension
1108*1082*2200mm
Cooling Method
Air cooling
Ingress protection
IP55
Anti-corrosion Grade
C3
Product Advantage
-
All in one designIntegrated EMS, PCS, MPPT and BMS; Supporting PV access, on-grid to off-grid switching,Covering the Photovoltaic, Storage and Diesel generator. -
Flexible expansionSupport expansion a maximum capacity of 1.2MWh; Reserved DC expansion interface and support AC expansion. -
Smart controlSelf-developed EMS energy management system and Cloud platform, support remote monitoring and O&M. -
Ultimate securityIP55 Protection level; Aerosol fire suppression system for battery packs and systems; Intelligent BMS active balancing provides complete protection.
