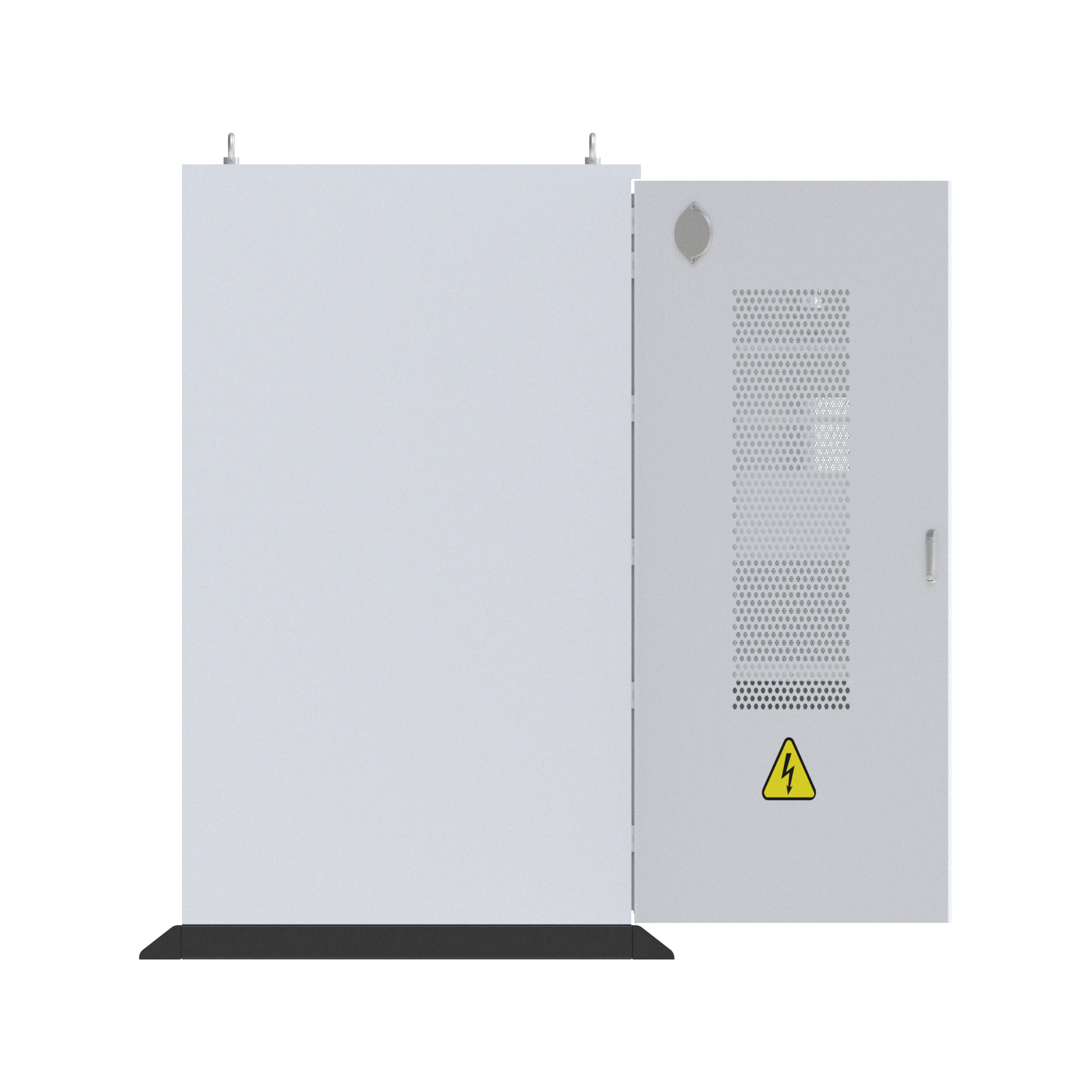

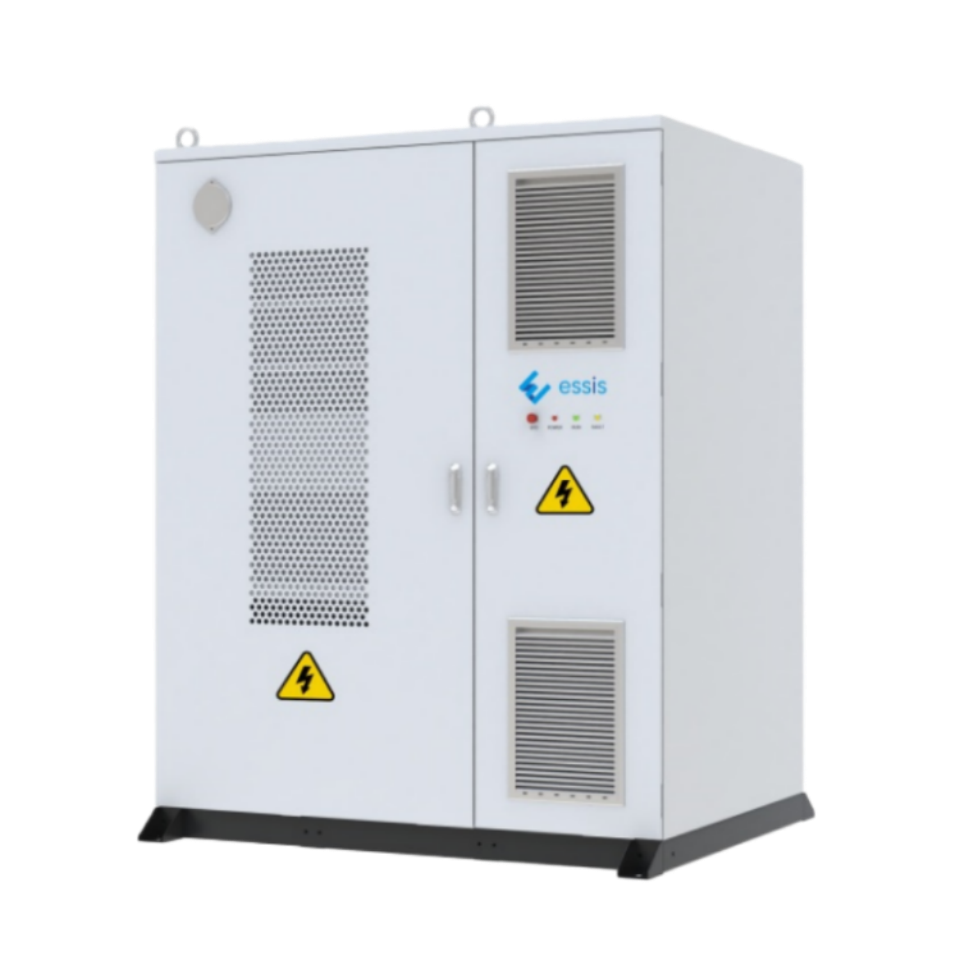

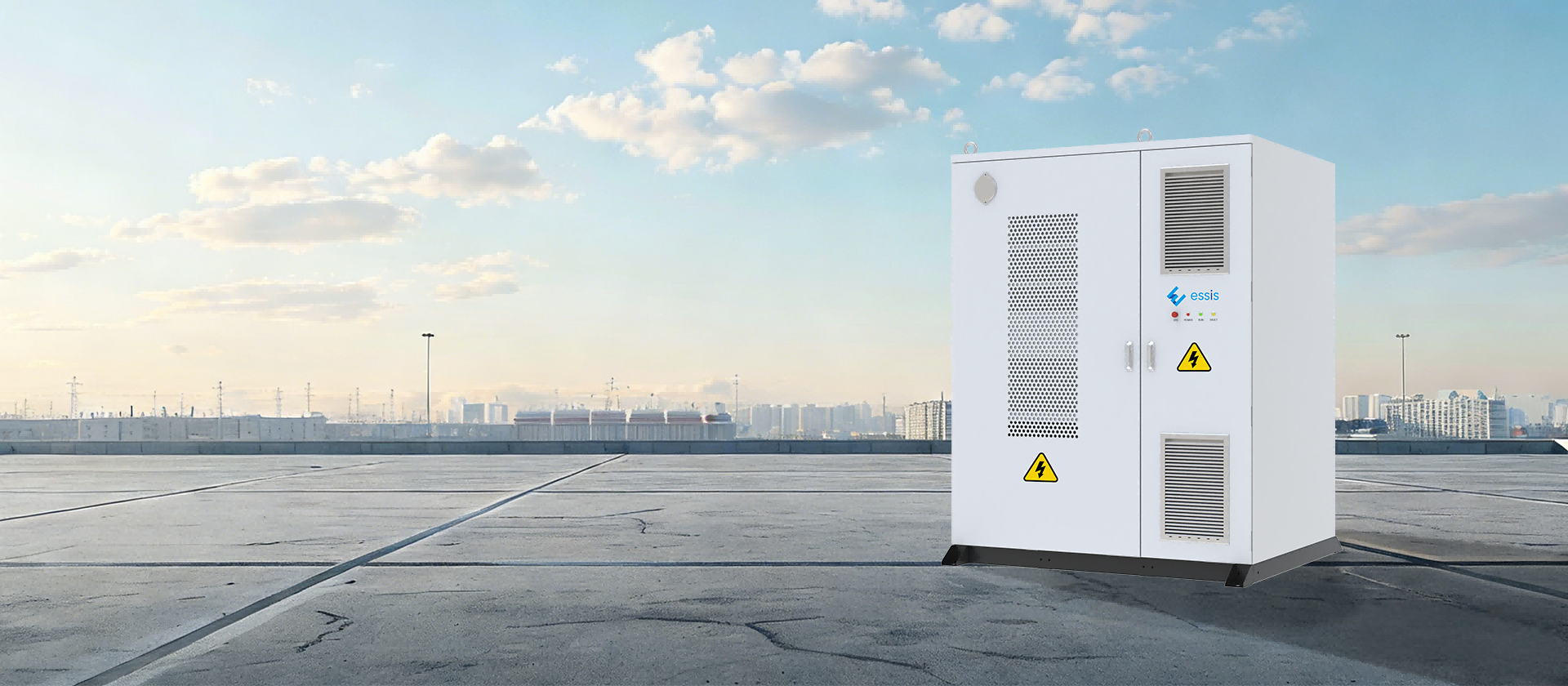

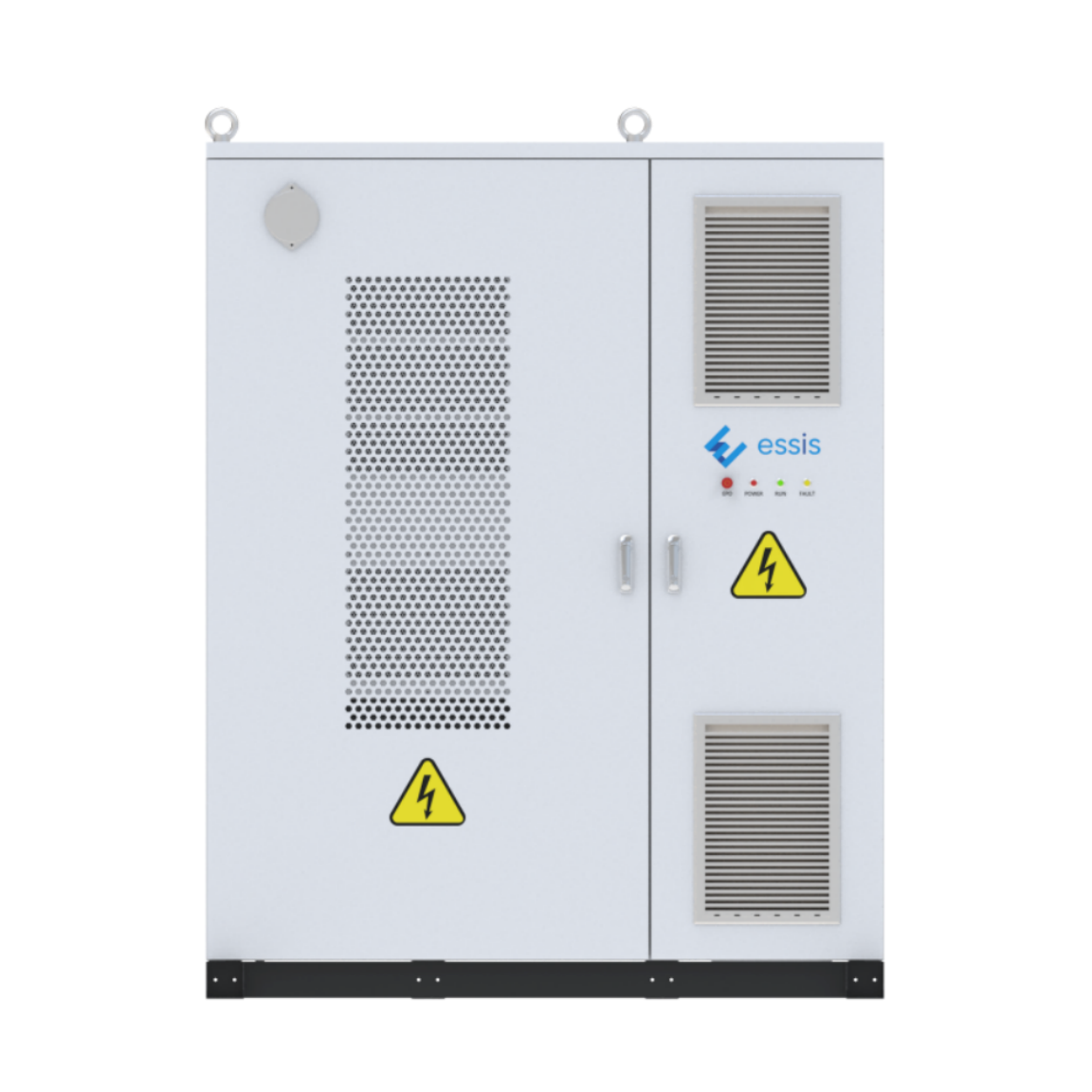

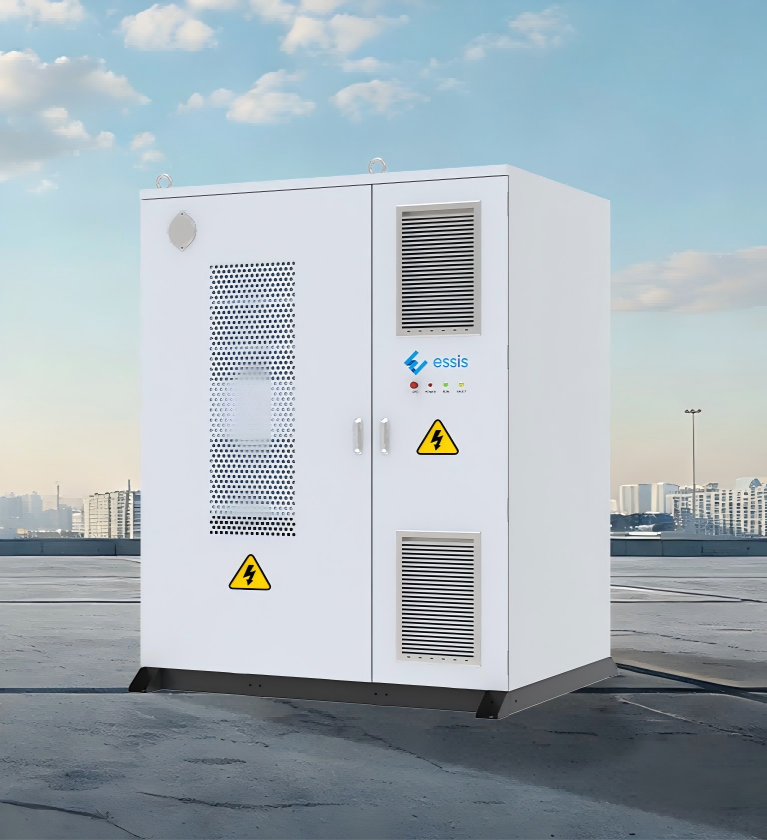

ESS215F
ESS215F features a single-cabinet capacity of 215 kWh and adopts a highly integrated design to enable efficient coordination of power generation, energy storage, and load management. Supports project-specific customization, allowing it to flexibly adapt to a wide range of commercial and industrial energy storage applications.
-
215kwh
Energy Storage Capacity Per Unit
-
All-in-one air cooling
Cooling Method
-
Ultimate security
Multi-layer protection device
Core parameters
-
Model
ESS215F
Battery Type
LiFePO4
Battery Capacity
280Ah
AC Maximum Current
170A
Weight
2800kg
Dimension
1780.5*1299*2250mm
Cooling Method
Air cooling
Ingress protection
IP55
Product Advantage
-
All in one designIntegrated EMS, PCS, MPPT and BMS; Supporting PV access, on-grid to off-grid switching, Covering the Photovoltaic, Storage and Diesel generator. -
Flexible expansionSupport expansion a maximum capacity of 2.58MWh; Reserved DC expansion interface and support AC expansion. -
Smart controlSelf-developed EMS energy management system and Cloud platform, support remote monitoring and O&M. -
Ultimate securityIP55 Protection level; Aerosol fire suppression system for battery packs and systems; Intelligent BMS active balancing provides complete protection. -
No Black OutEquipped with intelligent and efficient STS, the off-grid switching time is less than 20 ms (optional).
