Powerbox 5.1

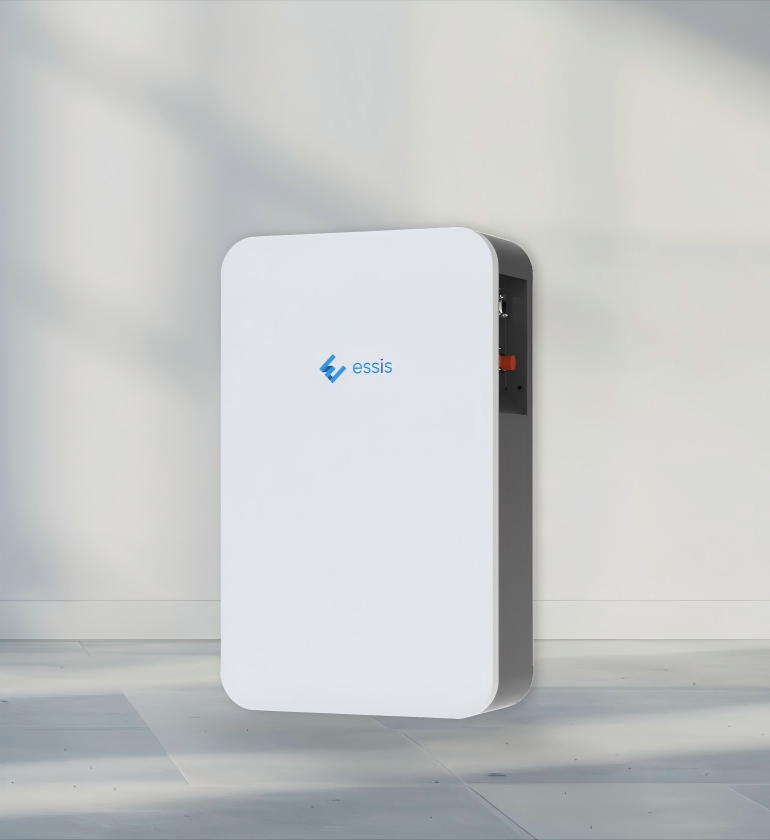

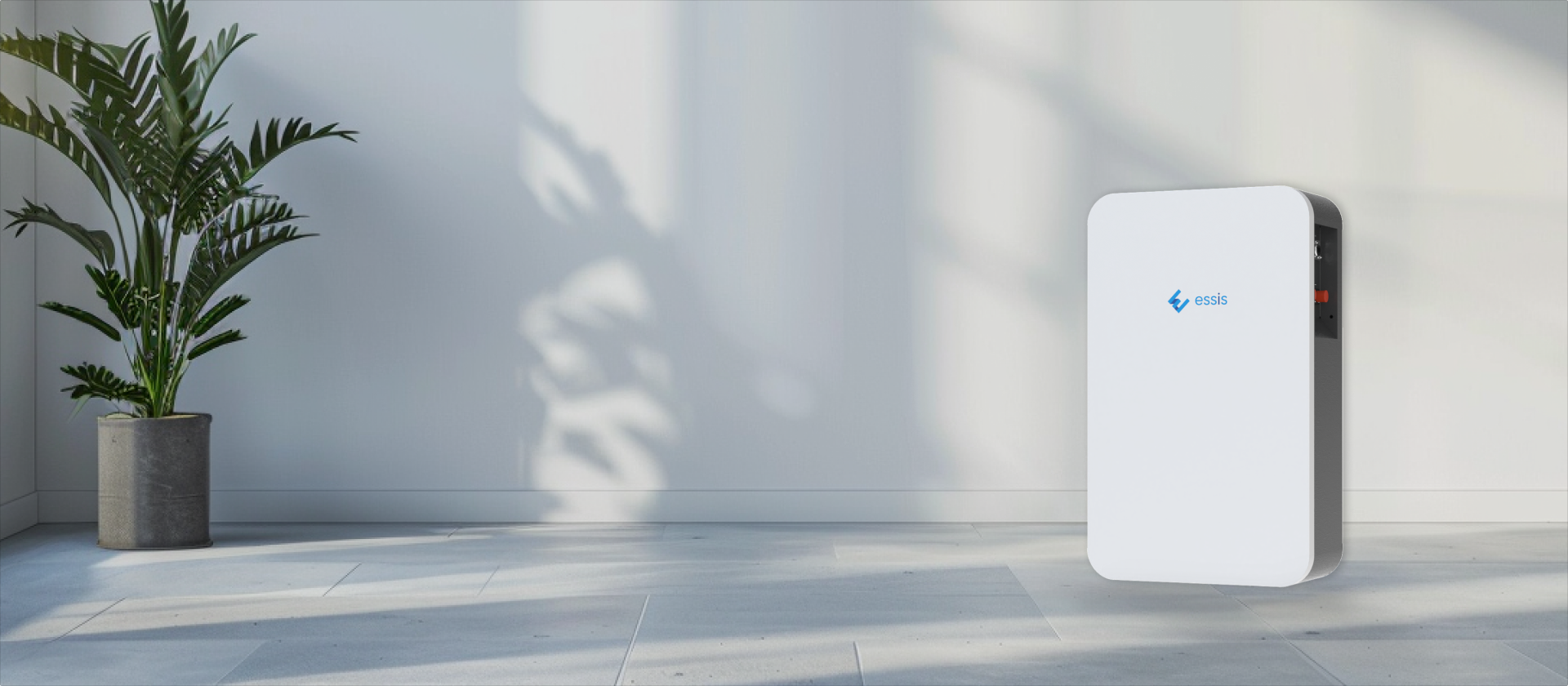

Powerbox 5.1 is a low-voltage wall-mounted energy storage battery with a single module capacity of 5.12 kWh, supporting modular expansion and designed for residential and small commercial applications. With an IP66 protection rating and a built-in heater, it is suitable for various installation environments and climate conditions, ensuring stable system operation.

Product Inquiry

5.12KWh

Rated Power per unit
IP66

Protection rating
Integrated Heater

Works at -20℃

Core parameters

Model	Powerbox 5.1
Battery Type	LiFePO4
Nominal Energy	5.12kWh
Capacity	100Ah
Nominal Voltage	51.2V
Cycle Life	≥6000
Installation	Wall-mounted
Protection Level	IP66
Expansion	Max. 16 units in parallel
Operating Temperature	Charge:-20℃~65℃；Discharge：-20℃~65℃

Datasheet

More Infomation

Product Advantage

High Safety LFP

LiFePO₄ battery with cell-level monitoring and balancing
High Protection rating

IP66 protection, outdoor installation
Easy Installation

Wall-mounted design for quick installation
Module Design

Flexible capacity expansion
Wide Compatibility

Compatible with leading inverter brands
